Introduction to Excel VBA

Introduction to Excel VBA

Just like you and I, Excel has a language too, the one it can speak and understand. This language is called as VBA (Visual Basic for Applications).

When you tell instructions to Excel in this VBA language, Excel can do what you tell it. Thus enabling you to program Excel so that you can automate a boring report, format a big&ugly chart, clean-up some messy data or just play some random noises.

What is a Macro then?

A macro is nothing but a set of instructions you give Excel in the VBA language.

Writing Your First Macro

In order to write your first VBA program (or Macro), you need to know the language first. This is where Excel’s tape recorder will help us.

Tape Recorder ??

Yes. Excel has a built-in tape recorder, that listens and records everything you do, in Excel’s own language, ie VBA.

Since we dont know any VBA, we will use this recorder to record our actions and then we will see recorded instructions (called as code in computer lingo) to understand how VBA looks like.

Our First VBA Macro – MakeMeRed()

Now that you understand some VBA jargon, lets move on and write our very first VBA Macro. The objective is simple. When we run this macro, it is going to color the currently selected cell with Red. Why red? Oh, red is pretty, bright and awesome – just like you.

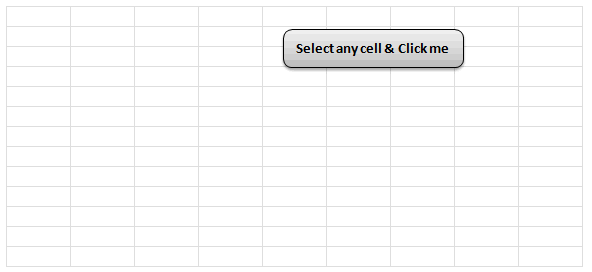

This is how our macro is going to work when it is done.

6 steps to writing your first macro

Step 1: Select any cell & start macro recorder

This is the easiest part. Just select any cell and go to Developer Ribbon & click on Record Macro button.

Step 2: Give a name to your Macro

Specify a name for your macro. I called mine MakeMeRed. You can choose whatever you want. Just make sure there are no spaces or special characters in the name (except underscore)
Click OK when done.

Step 3: Fill the current cell with red color

This is easy as eating pie. Just go to Home ribbon and fill red color in the current cell.

Step 4: Stop Recording

Now that you have done the only step in our macro, its time to stop Excel’s tape recorder. Go to Developer ribbon and hit “stop recording” button.

Step 5: Assign your Macro to a button

Now go to Insert ribbon and draw a nice rectangle. Then, put some text like “click me to fill red” in it.
Then right click on the rectangle shape and go to Assign Macro. And select the MakeMeRed macro from the list shown. Click ok.

Step 6: Go ahead and play with your first macro

That is all. Now, we have linked the rectangle shape to your macro. Whenever you click it, Excel would drop a bucket of red paint in the selected cell(s).
Go ahead and play with this little macro of ours.

Understanding the MakeMeRed Macro Code

Now that your first macro is working, lets peek behind the scenes and understand what VBA instructions are required to fill a cell with red.
To do this, right click on your current sheet name (bottom left) and click on View code option. (You can also press ALT+F11 to do the same).
This opens Visual Basic Editor – a place where you can view & edit various VBA instructions (macros, code) to get things done in Excel.

Understanding the Visual Basic Editor:

Before understanding the MakeMeRed macro, we need to be familiar with VBE (Visual Basic Editor). See this drawing to understand it.

Viewing the VBA behind MakeMeRed

1. Select Module 1 from left side area of VBE (called as Project Explorer).
2. Double click on it to open it in Editor Area (top right, big white rectangle)
3. You can see the VBA Code behind MakeMeRed

If you have followed the instructions above, your code should look like this:

Sub MakeMeRed()
'
' MakeMeRed Macro
'
With Selection.Interior
.Pattern = xlSolid
.PatternColorIndex = xlAutomatic
.Color = 192
.TintAndShade = 0
.PatternTintAndShade = 0
End With
End Sub

So much for a simple red paint!!!
Well, what can I say, Excel is rather verbose when it is recording.

Understanding the MakeMeRed VBA Code

Lets go thru the entire Macro code one line at a time.

• Sub MakeMeRed(): This line tells Excel that we are writing a new set of instructions. The word SUB indicates that the following lines of VBA are a sub-procedure (or sub-routine). Which in computer lingo means, a group of related instructions meant to be followed together to do something meaningful. The Sub-procedure ends when Excel sees the phrase “End Sub”
• Lines starting with a single quote (‘): These lines are comments. Excel will ignore anything you write after a single quote. These are meant for your understanding.
• With Selection.Interior: While filling a cell with Red color may seem like one step for you and I, it is in fact a lot of steps for your computer. And whenever you need to do a lot of operations on the same thing (in this case, selected cell), it is better to bunch all of them. This is where the WITH statement comes in to picture. When Excel sees With Seletion.Interior, Excel is going to think, “ok, I am going to do all the next operations on Selected Cell’s Interior until I see End With line“
• Lines starting with .: These are the lines that tell Excel to format the cell’s interior. In this case, the most important line is .Color = 192 which is telling Excel to fill Red color in the selected cell.
• End With: This marks the end of With block.
• End Sub: This marks the end of our little macro named MakeMeRed().

Few Tips to understand this macro better:

Once you are examining the macro code, here are a few ways to learn better.

• Change something: You can change almost any line of the macro to see what happens. For example, change .color = 192 to .color = 62 and save. Then come back to Excel and run your macro to see what happens.
• Delete something: You can remove some of the lines in the macro to see what happens. Remove the line .PatternColorIndex = xlAutomatic and run again to see what happens.
